Know what every request costs. A single agent might chain five LLM calls — without cost tracking, you’re guessing what you’re spending. Arize AX calculates cost for every span, aggregates it at the trace level, and lets you filter, monitor, and optimize from there.

​

What is Cost Tracking?

Arize AX calculates the cost of every LLM call in your traces — at the trace level (total cost of a request) and at the span level (cost of each individual LLM call). Use it to:

• Spot which requests or agents are expensive and why
• Track spend across models and providers over time
• Catch cost spikes before they become budget problems
• Compare cost/quality tradeoffs between different models

Arize includes default cost configurations for common models (GPT-4o, Claude, Gemini, Mistral, and more), making it easy to get started with no setup required in many cases.

​

Token Tracking

Arize AX tracks token usage via standard OpenInference attributes on your LLM spans: Cost is calculated based on these token counts and the cost configuration for the model. The system supports multiple token types for detailed cost breakdowns: Cost configs also support tiered pricing — volume-based pricing where cost per token changes based on total token count thresholds. These token counts are how Arize calculates cost:

​

How Cost Tracking Works

When a span is received, Arize AX determines cost as follows:

1. If the span already includes cost attributes (set by the client), those values are used as-is.
2. Otherwise, the system looks up a cost configuration by matching llm.model_name and llm.provider.
3. The matching config’s per-token rates are applied to the span’s token counts.
4. Cost configs are cached with a 10-minute TTL for performance.

Cost attributes on spans:

​

Set Up Cost Tracking

​

1. Use a Default (Zero Setup)

If your model and provider match a default, Arize automatically applies the correct pricing — no action needed.

​

2. Customize a Default

To tweak an existing config (e.g., apply discounts):

• Go to Settings > Cost Tracking > Configuration
• Click Options > Clone on a default config
• Edit fields like token type cost or provider name

​

3. Create from Scratch

To define your own model config:

• Click Add New
• Enter the model name (required)
• Optionally enter the provider
• Specify cost per 1 million tokens for each token type
• Assign each token type to Prompt or Completion

​

Using Cost Data

Once configured, cost data is available across the platform.

​

Filtering and Monitoring

All cost attributes are available throughout the platform and can be used to:

• Filter traces or spans where cost exceeds a defined threshold
• Create monitors for high-cost traces or model behavior anomalies
• Build dashboards based on specific token types or cost groupings

​

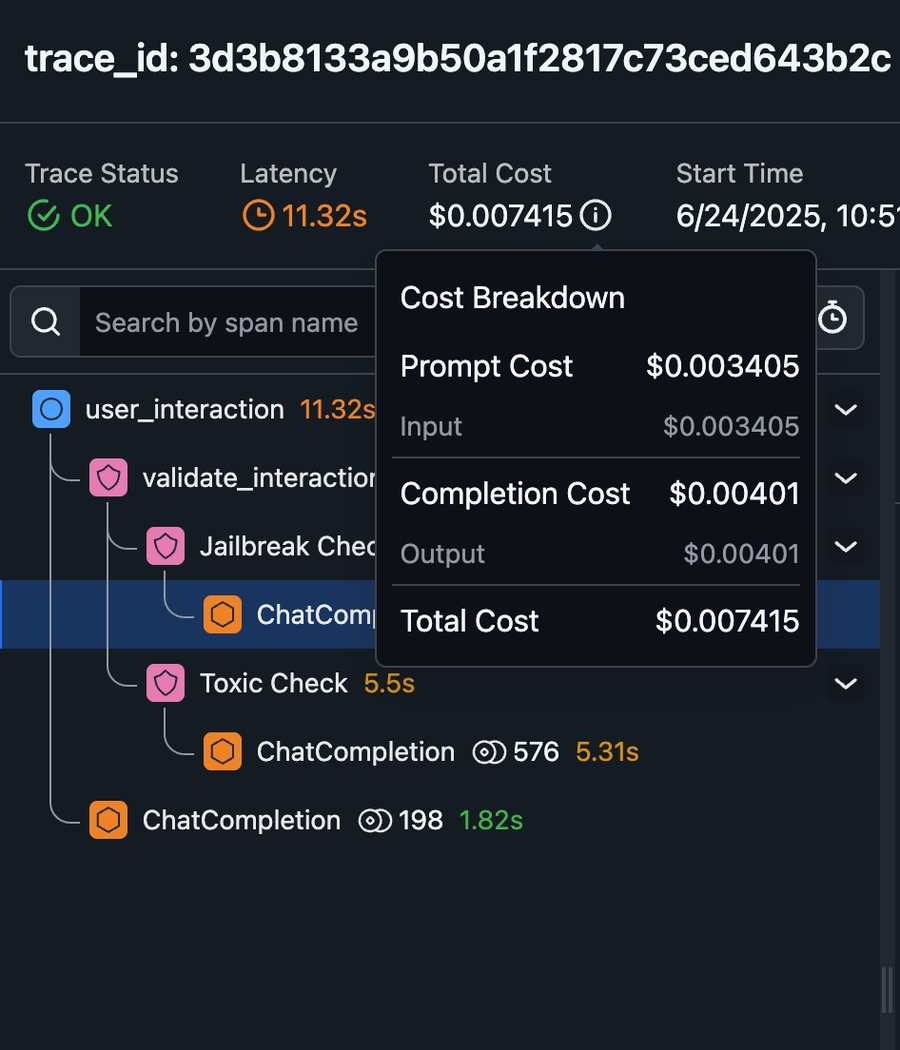

Trace-Level Visualization

At the trace level, Arize aggregates cost across all LLM spans in the trace. This provides a complete view of how much it cost to serve a given request end-to-end.

​

Span-Level Visualization

You can also inspect cost at the individual span level, including a breakdown by token type. This allows you to:

• Pinpoint expensive steps in the LLM pipeline
• Analyze the relative contribution of different token categories (e.g., reasoning, cache, image)

​

Lookup Logic

To determine cost:

1. We extract the model name from your trace using the following fallback order:
   • llm.model_name (Primary)
   • llm.invocation_parameters.model (Fallback 1)
   • metadata.model (Fallback 2)
2. Optionally, if you provide a provider, we’ll match that as well (e.g., differentiating OpenAI vs Azure OpenAI for gpt-4).
3. Each token type (e.g., prompt, completion, audio) is matched against the configuration, and the cost is calculated per million tokens (1M token unit basis).

​

Supported Token Types and Semantic Conventions

You can send any token types using OpenInference semantic conventions. Below are the supported fields:

​

Prompt Tokens

​

Completion Tokens

​

Total Tokens (Optional)

llm.token_count.total

​

Custom Token Types

You can also define custom token types under either prompt_details or completion_details. Just make sure to:

• Use semantic naming
• Include a matching token type and cost in your configuration

Each token sent will have a cost calculated provided a matching token type is defined in your configuration.

---

​

Next step

Configure your OpenTelemetry tracer for production — batch processing, routing, and resource attributes:
